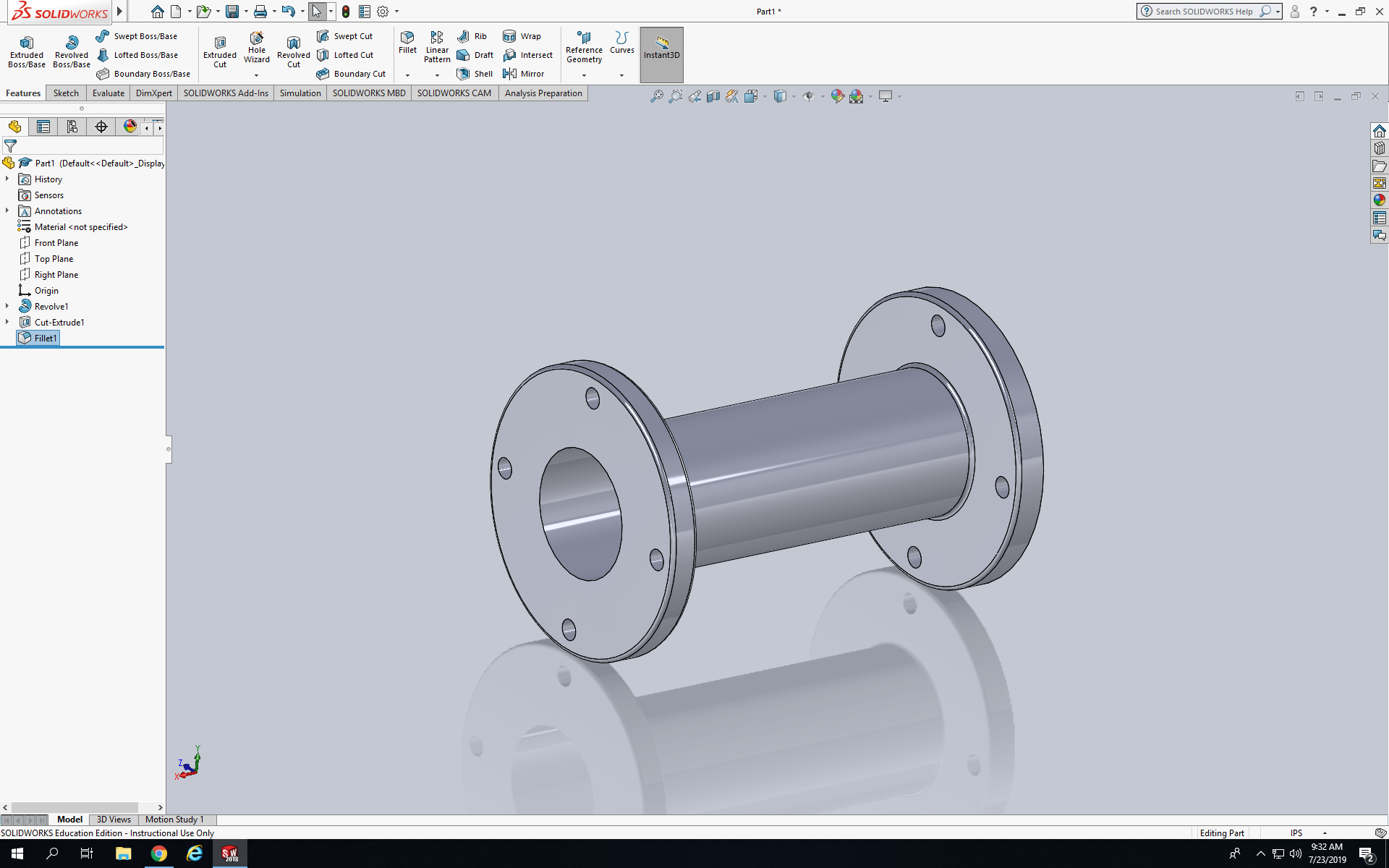

Today we completed the Schedule 40 Pipe and I took a while to make if it’s your first time doing one. To make one first I sketched half of the pipe just by using a like, the full dimension of the height is 9in so I divided the 9 by 2 and 4.5in so that’s the half and the pipe is 4.5in so I divided by 2 so the dimension of the height is 2.25. The dimension of the bottom of the base is .938in and the top base was .938in also. Next I press revolved boss/base so the other half of the pipe is created. Next I sketch a circle in the middle of one of the base that was 4.029in and I sketch four smaller circle next to the edges that was 7.5in away from another smaller circle. Last I extruded the circle all the way through to get what is shown below.

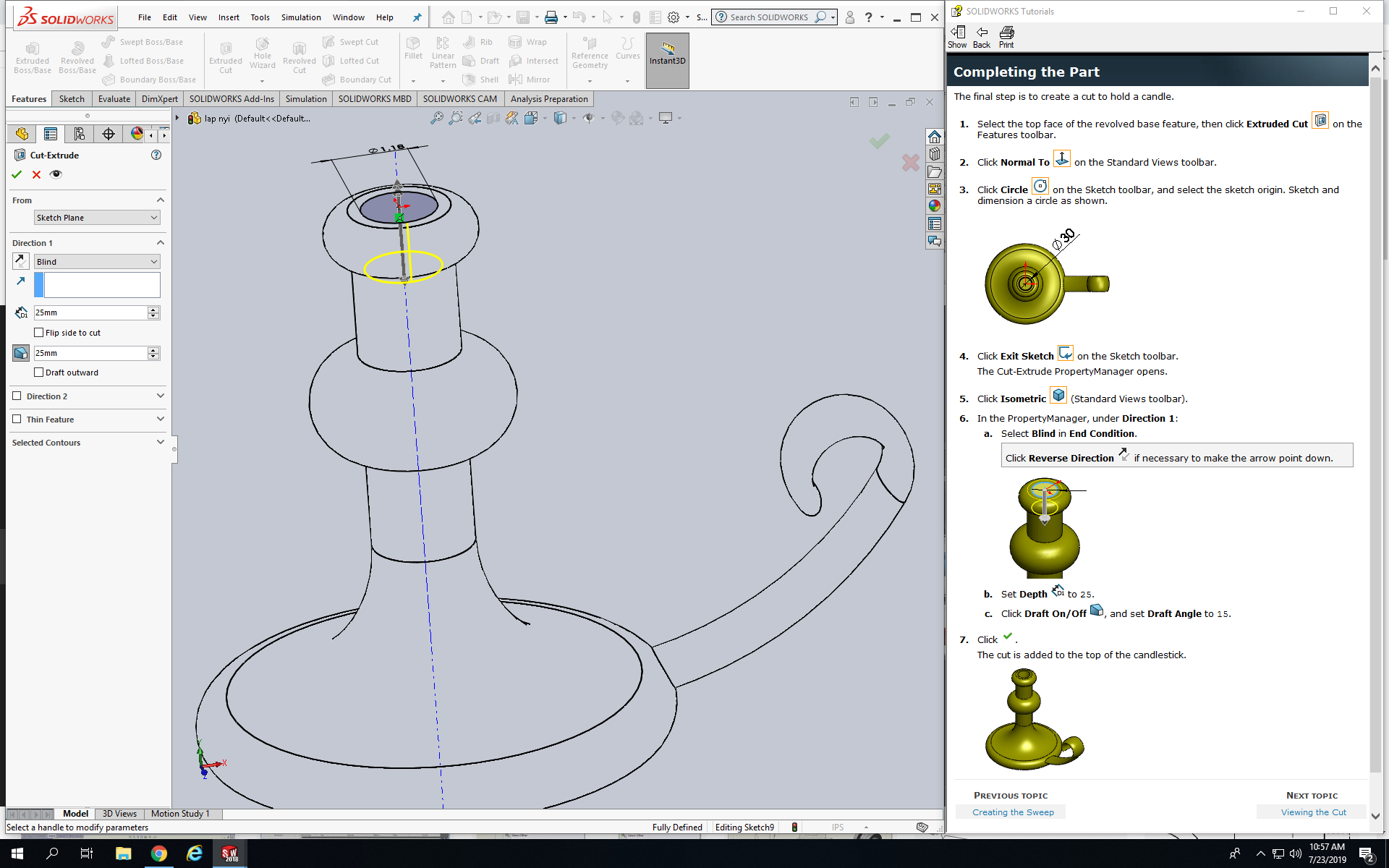

For the candle holder I sketched half of the holder. Next I did the same thing as the pipe but this candle holder more curves than the pipe. Next I sketched a the holder than I extruded it and got what is shown above.
